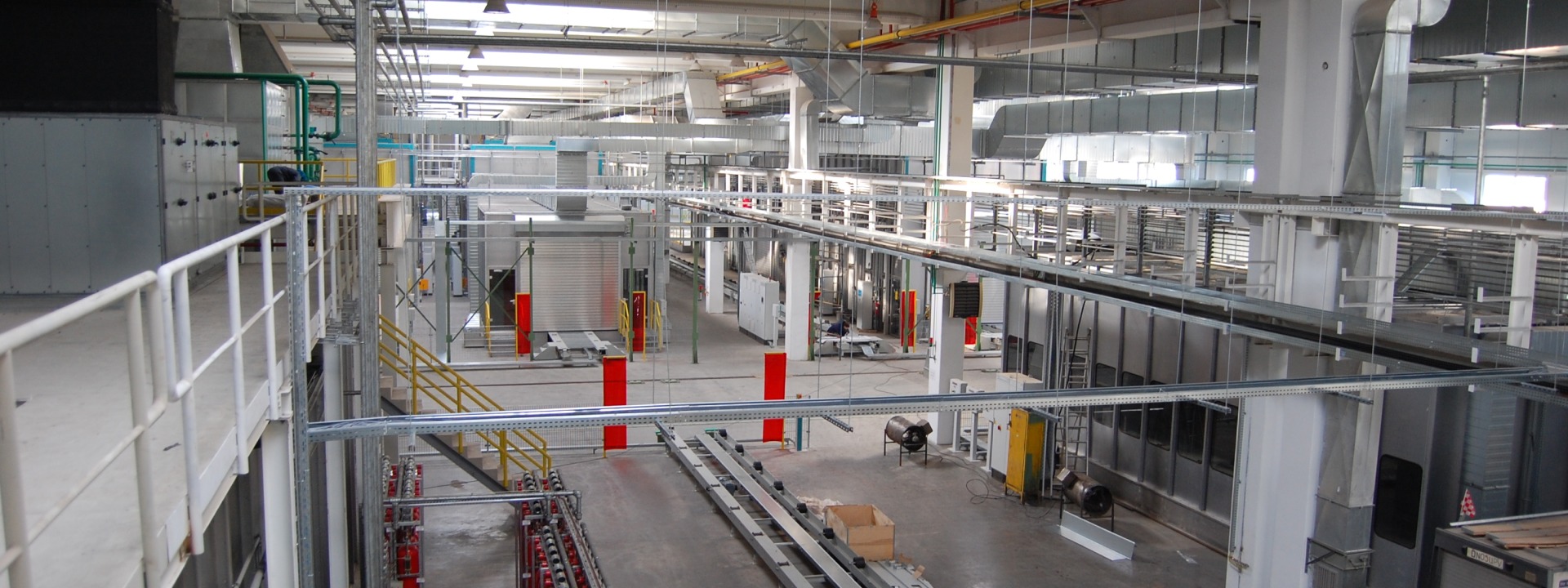

«EISENMANN» Facility

The facility for painting bodies of buses “EISENMANN” includes surface preparation, cataphoresis treatment, drying and cooling of cataphoresis coating for bodies weighing up to 5200 kg with overall dimensions:

  • Length: 12000mm;
  • Width: 2500mm;
  • Height: 2750mm;

The throughput of this line is 1.2 bodies per hour, which allows processing up to 4600 bodies per year. The temperature of the circulating air in the drying chamber is adjustable – 150-200 ° С

The complex also has four lines where mastics, putties are applied and polished on individual surfaces of the body, two-component primers, and two-component topcoats are applied, as well as posts for eliminating defects.

These lines and stations allow carrying out technological operations on bodies weighing up to 5200 kg with overall dimensions:

  • Length: 10600mm;
  • Width: 2500mm;
  • Height: 2750mm.

The temperature of the circulating air in the drying chambers is adjustable – 60-80 ° С

Painting facility includes:

  • crane installation of the surface preparation and cataphoresis treatment line;
  • roller conveyors;
  • transport of transverse movement of bodies;
  • lifting and sliding platforms;
  • air conditioners for heating the case;
  • general ventilation;
  • air conditioning for cameras;
  • equipment for emergency discharge of cataphoretic soil;
  • emergency power supply unit for cataphoresis treatment area;
  • warehouse of paints and varnishes;
  • equipment for paint preparation department;
  • device for removing phosphate sludge;
  • reserve tank for phosphating;
  • laboratories and inspection chambers;
  • wastewater treatment plants;
  • installation for water demineralization;
  • installation for cleaning skids for bodies;
  • waste air purification equipment;
  • water cooler;
  • an automatic fire extinguishing system using carbon dioxide for painting chambers, drying chambers, as well as for a paint preparation department, a warehouse of paints and varnishes
